Anyone following our blog already knows that the rocker arm is a key component for engine operation, directly controlling the valves and influencing the performance and durability of the powertrain. But did you know there are different types of rocker arms, each with its unique characteristics?
Although this part is responsible for transferring movement from the camshaft to the valves—allowing them to open and close at the precise moment to ensure the air-fuel mixture enters the combustion chamber—it’s essential to understand that each type of rocker arm performs this task differently, as we’ll explore in more detail in this article. Stay with us and enjoy the read!

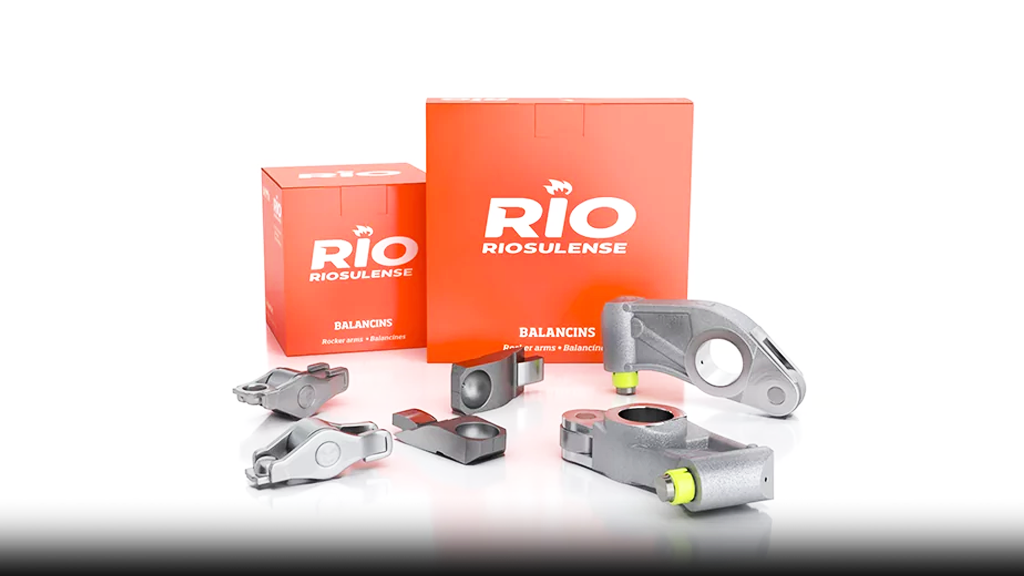

Understanding the Different Types of Rocker Arms
For an Expert, knowing the different types of rocker arms and their applications is a matter of technical precision. After all, as we’ve already mentioned, each model has unique characteristics that make it more suitable for specific applications, whether in high-performance engines, trucks, or urban-use vehicles.
That’s why, in the automotive replacement market, you’ll typically find three different configurations of this part: the roller rocker arm, the flat cam rocker arm, and the cup rocker arm. Below, find out how they meet different engine and vehicle demands.
Roller Rocker Arm
The roller rocker arm is known for its efficiency in reducing friction during engine operation. It features a roller at its tip, which facilitates the part’s sliding over the valve and reduces wear on both the rocker arm and the valve stem.
This characteristic makes it ideal for high-performance engines, where friction reduction is critical to optimizing engine response and extending the lifespan of components. Additionally, the roller rocker arm is widely used in racing vehicles, enabling smoother, quieter operation with less risk of overheating.
Flat Cam Rocker Arm
Perhaps one of the most common types, the flat cam rocker arm is typically found in everyday vehicles. It has a flat surface that contacts the valve stem, directly transmitting the camshaft’s motion.
Although it generates more friction than the roller rocker arm, it is a durable and cost-effective option for engines that don’t demand the same level of performance as a sports car. This type of rocker arm is generally used in urban vehicles where durability and ease of maintenance are priorities.
Cup Rocker Arm
Finally, the cup rocker arm features a more robust design with a concavity that accommodates the end of the valve stem. This design provides more stable contact and reduces the likelihood of valve misalignment. For this reason, the cup rocker arm is widely used in diesel engines for heavy vehicles and applications where the rocker arm is subjected to high loads.
We also have exclusive content on our YouTube channel explaining the functionalities and handling care for rocker arms in greater detail. Check it out:
4 Application Tips for Rocker Arms
It’s worth noting that proper installation and maintenance of different types of rocker arms are essential to ensure engine efficiency and part durability, regardless of the model you’re working on. With that in mind, here are some best practices to help ensure precise and reliable work:
Always Check the Alignment of the Rocker Arm with the Valve Stem
Before installing any type of rocker arm, it’s crucial to check its alignment with the valve stem to prevent uneven wear. Misalignment can compromise engine operation and lead to premature deterioration of the rocker arm and valve. Using measurement tools can ensure the rocker arm is correctly positioned relative to the camshaft and valve stem.
Ensure Proper Lubrication of the Rocker Arm
Proper lubrication of the rocker arm is also essential to avoid excessive friction and premature wear. Use high-quality lubricant and apply it according to the specifications recommended for the rocker arm and engine in question. For roller models, good lubrication helps keep the roller in optimal working condition, reducing heat and extending the part’s lifespan.
Follow the Manufacturer’s Recommended Torque Specifications
Each rocker arm has a specific torque requirement that must be strictly followed. Incorrect tightening can cause gaps or overload the system, impairing engine performance. Always use a calibrated torque wrench to apply the torque specified by the manufacturer and ensure the rocker arm is securely fastened without compromising the necessary mobility for valve operation.
Perform Regular Inspections
Finally, remember that the rocker arm is subject to continuous wear, especially in engines operating under high loads or at high speeds. Regular inspections are an effective way to identify any signs of wear or misalignment before they compromise engine performance. During these inspections, check the condition of the bearings, rods, and valve itself to ensure the entire system is functioning harmoniously.
Remember: Rocker Arm Quality is with RIO!
Today, we’ve learned that rocker arms are essential components for proper engine operation and that each type plays a specific role based on the engine’s and vehicle’s needs.
By understanding the differences between roller, flat cam, and cup models, specialists can make more informed choices, ensuring each engine operates efficiently and reliably. Additionally, following installation and maintenance tips is crucial to avoiding mechanical issues and optimizing engine performance.
